- Product Description
-
▎Product overview
Vacuum glass is a new type of glass deep processing product, which is developed based on the principle of thermos bottle. The structure of vacuum glass is similar to that of hollow glass, but the difference is that the gas in the vacuum glass cavity is very thin, almost close to vacuum.
Vacuum glass is to seal two pieces of flat glass around, vacuum the gap into a vacuum and seal the vent hole, the gap between the two pieces of glass is 0.3mm, at least one of the two pieces of vacuum glass is low radiation glass, so that the heat lost through the conduction, convection and radiation of the vacuum glass can be reduced to Z low. Its working principle is the same as that of glass thermos.

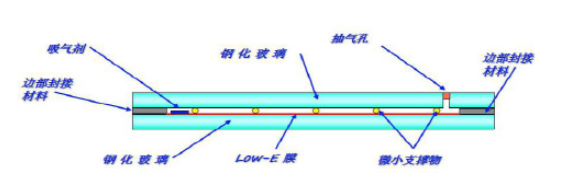

1. Product structure profile
2. Product specifications and dimensions
3. Product advantage
3.1 All toughened can be used separately
The stress at any point on the surface of pilot V glass is more than 90MPa, and the broken is obtuse Angle small particles, in line with the toughened glass national standard GB15763.2-2005, through the American safety glass standard ANSI Z97.1, and obtained the American SGCC (Safety glass Certification Association) certification. Pilot V glass wind pressure strength reached ±7200Pa(ATI laboratory report), to meet the domestic wind pressure standard Z advanced level 9 (national standard GB/T7106-2008, 9 wind pressure strength ≥5000Pa).
3.2 Good heat insulation and heat preservation performance
The thermal insulation performance of vacuum glass is based on the principle of vacuum thermos. The heat insulation effect of Pilot V glass products is more than 1 meter thick brick wall, 4~6 times that of ordinary insulating glass, U value (also called heat transfer coefficient or K value) as low as 0.4W /m2K (European IFT laboratory report)
3.3 Good sound insulation and noise reduction performance

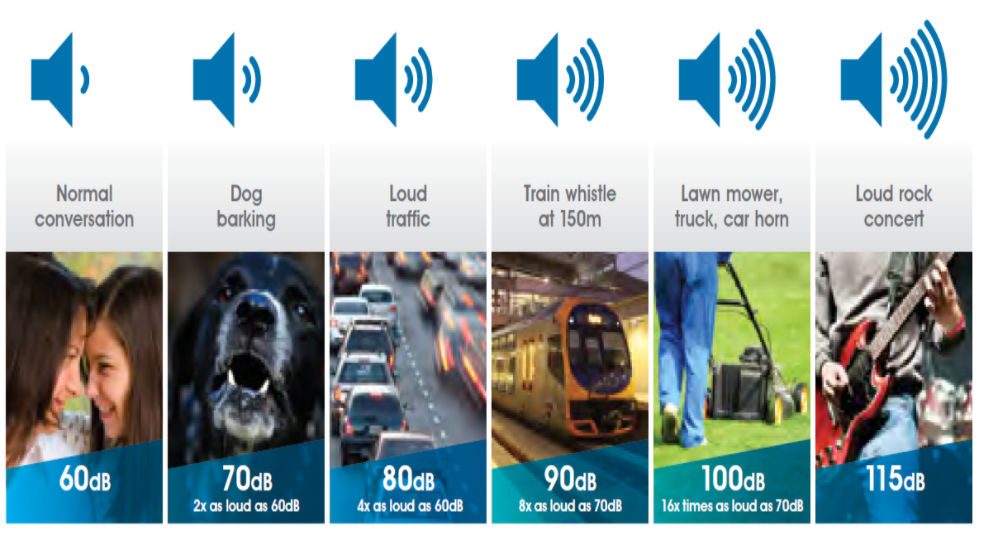

The sound insulation and noise reduction performance of vacuum glass is based on the sound does not propagate under vacuum conditions. Pilot V glass weight sound insulation volume reached 39 decibels (CTC national inspection group report), the general insulating glass weight sound insulation volume is about 28 decibels.
With Pilot V, the interior is as quiet as a library, even at the airport, viaduct or by the main road.
Note: The higher the weight of sound insulation, the better the sound insulation effect. Such as outdoor noise is 75 decibels, using pilot V glass, indoor sound is 36 decibels (75-39=36), the library is generally below 40 decibels.
3.4 Good dew resistance
There is no gas inside the pilot V glass, so there is no condensation and fog inside it. Moreover, due to the extremely low U value, there is no condensation even if the outdoor temperature reaches minus 40 degrees Celsius. And the sealing material does not contain the heavy metal lead, has passed the RoHS certification, fully applicable to the global high-end home appliance market.
3.5 Long service life
The components of pilot V glass are inorganic materials. In the process of use, even in the face of high temperature, high humidity and high radiation and other harsh environment, it is not easy to appear aging, and the high vacuum cavity can prevent Low-E film oxidation, making the pilot V glass life of more than 25 years.
Pilot V Glass, 15 years long warranty.
4. Contrast with hollow glass
5. Application field
Building and household field
Application: Curtain wall, doors and Windows, lighting ceiling glass of high-end commercial, civil and passive house buildings, public buildings and landmark buildings, as well as silent doors and silent window glass; It can also replace the original single-layer glass on the doors and Windows of ancient buildings to improve the energy-saving effect of ancient buildings.
Home appliance field
Application: high-end refrigerator, wine cabinet, display cabinet, etc.
Scientific research field
Application: experimental observation window, test cabinet, etc.
Transportation field
Application: Window glass on aircraft, high-speed train, cruise ship, automobile and other vehicles.
Agricultural field
Application: All kinds of glass greenhouse in modern agriculture.
Photovoltaic integration
Application: solar photovoltaic building integration.
