Insulated Glass
Product Features: Soundproofing, Heat Insulation, Energy Saving, UV Blocking. Size Range: The size and thickness can be customized according to the customer's requirements. Applications: Curtain wall, Windows, Doors, Lighting Roof, Appliances.
Category：
Product
- Product Description
-
Insulated glass is a glass component made of two or more pieces of glass, separated by a certain width of space with an aluminum frame filled with efficient molecular sieve adsorbent, and then sealed with a high strength sealant on the side. Ordinary transparent glass, colored glass, thermal reflection coating glass, Low-E glass, laminated glass, toughened glass, hot bending glass, etc. can be selected as the base of insulated glass according to the needs.
Features
◆ Optical performanceAccording to the different properties of composite insulated glass, generally visible light transmittance range is 7%~80%, reflectance is 10%~42%.
◆ Thermal performanceCan effectively reduce the heat transfer coefficient, if filled with inert gas can further reduce the heat transfer coefficient U value.
◆ Sound insulation performanceGenerally, insulated glass can reduce noise by about 30 decibels, and the sound insulation effect of insulated glass can be further improved after filling with inert gas.
◆ Anti-frost performanceNational standards stipulate that the dew point of insulated glass must be lower than -40℃ to ensure that the air layer jue of insulated glass is dry and no condensation.
◆ SealingAluminum spacer frame is formed by automatic bending technology, which minimizes the connection; Using butyl glue and polysulfide glue or structural glue double channel seal, to ensure the sealing of insulated glass and extend its service life.
Applications
Insulated glass is a kind of good heat insulation, sound insulation, beautiful application, and can reduce the building weight of a new building material, is widely used in building doors and Windows, curtain walls, partitions and refrigerators.
Specification
◆ Maximum size: 2800mm×5000mm (except manual)◆ Minimum size: 180mm×300mm
◆ Aluminum frame thickness: 6mm, 9mm, 12mm, 15mm, 16mm, 19mm, 20mm
◆ Glass thickness: 3mm~19mm of various combinations
Quality standard
◆ Comply with GB11944 "insulated glass" national standard
◆ Meet the Australian standard AS/ NZS4666:2012
◆ Comply with ASTM E2190 American Standard (IGCC)Configuration Parameters
Series
Configuration
Visible Light
gValue
SHGC
SC
RHG W/m²
European U-Value
W/(m² ·K)
Transm- ittance
Reflec-
tance
(Out)
Reflec-
tance
(In)
JGJ/T
151-2008
NFRC
100-2004
JGJ/T
151-2008
NFRC
100-2004
NFRC
100-2004
JGJ/T
151-2008
NFRC 100-2004
EN673
Summer daytime
Winter nighttime
IGU
6+6A+6
80
15
15
0.73
0.73
0.84
0.84
554
2.98
3.18
3.11
3.2
6+12A+6
80
15
15
0.73
0.73
0.84
0.84
551
2.61
2.84
2.70
2.8
6+16A+6
80
15
15
0.73
0.73
0.84
0.84
550
2.61
2.73
2.69
2.7
8+12A+8
78
14
14
0.70
0.70
0.81
0.80
526
2.59
2.81
2.67
2.8
10+12A+10
77
14
14
0.68
0.68
0.79
0.78
513
2.56
2.77
2.64
2.8
6FGN+12A+6
67
12
14
0.48
0.48
0.55
0.55
369
2.61
2.84
2.70
2.8
6BLU+12A+6
58
10
13
0.53
0.53
0.61
0.61
406
2.61
2.84
2.70
2.8
IGU Mth ner gases
6+9A Ar+6
80
15
15
0.73
0.73
0.84
0.84
551
2.54
2.80
2.62
2.80
6+12A Ar+6
80
15
15
0.73
0.73
0.84
0.84
550
2.46
2.70
2.53
2.70
Except for those marked with standards, the above data are all calculated based on the WINDOW 6.3 software of Lawrence Berkeley National Laboratory, USA.

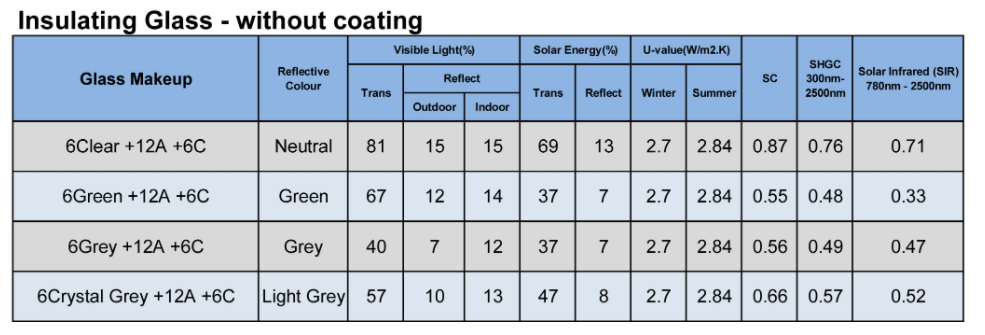

Insulated Glass - without coating
Glass Makeup
Reflective
Colour
Visible Light(%)
Solar Energy(%)
U-value(W/m2.K)
SC
SHGC 300nm-2500nm
Solar Infrared (SIR) 780nm-2500nm
Trans
Reflect
Trans
Reflect
Winter
Summer
Outdoor
Indoor
6Clear+12A+6C
Neutral
81
15
15
69
13
2.7
2.84
0.87
0.76
0.71
6Green+12A+6C
Green
67
12
14
37
7
2.7
2.84
0.55
0.48
0.33
6Grey+12A+6C
Grey
40
7
12
37
7
2.7
2.84
0.56
0.49
0.47
6Crystal Grey +12A+6C
Light Grey
57
10
13
47
8
2.7
2.84
0.66
0.57
0.52
